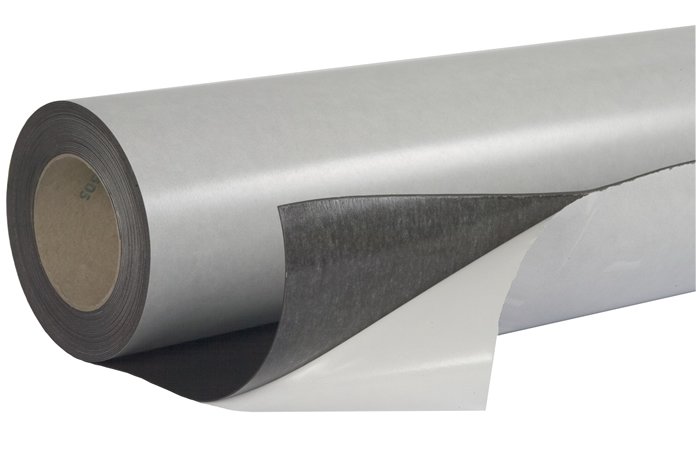

620mm x 0.75mm x 1 Metre Adhesive Magnetic Strontium Ferrite Sheeting | Magnetic Sheets

if you are looking for magnetic strips please see our: Magnetic strips range.

PSA3001SA is a standard adhesive magnetic tape, which is made from: Strontium Ferrite – a magnet material – and then bonded into a thermo-plastic which is then extruded as a strip.

Application information

This particular magnetic tape is primarily used for:

• Attaching graphics to steel pop up display frames
• In-store steel work
• Making fridge magnets in various sizes
• Attaching to perspex material
• and similar applications

Magnetic Properties

• Maximum Energy Product: 0.57 to 0.74 MGOe
• Remanence: 1600-1800 G
• Coercivity: 1130-1500 Oe
• Intrinsic Coercivity: 1940-2500 Oe

Magnetic Properties & Magnetic Pull

Magnetic Pole Width with 2.5mm

Physical Properties

Flexibility: can be wrapped around a rod with a 12mm radius at 20�C without cracking Specific Gravity: 3.6 to 3.8 g/cm³ Cutting: Scissor cutting, knife-cutting, die-cutting, and slitting can be done with ease.

Temperature Resistance Information

This 1.5mm standard adhesive magnetic sheeting has an End-use temperature range of: -30�C / + 55�C Short term resistance: 65�C

Back coating

The magnetic sheeting has a UV hardened coating on the magnetic side

Not sure if the standard adhesive magnetic sheeting is right for you?

If you are not sure if this tape is right for your individual requirements please do not hesitate to contact our friendly sales team and we will be happy to help you.

Do you require a Certificate of Conformance and traceability?

If you require a Certificate of Conformance, please contact us after ordering (either by phone or email) and we will get this sent out to you with your order.
